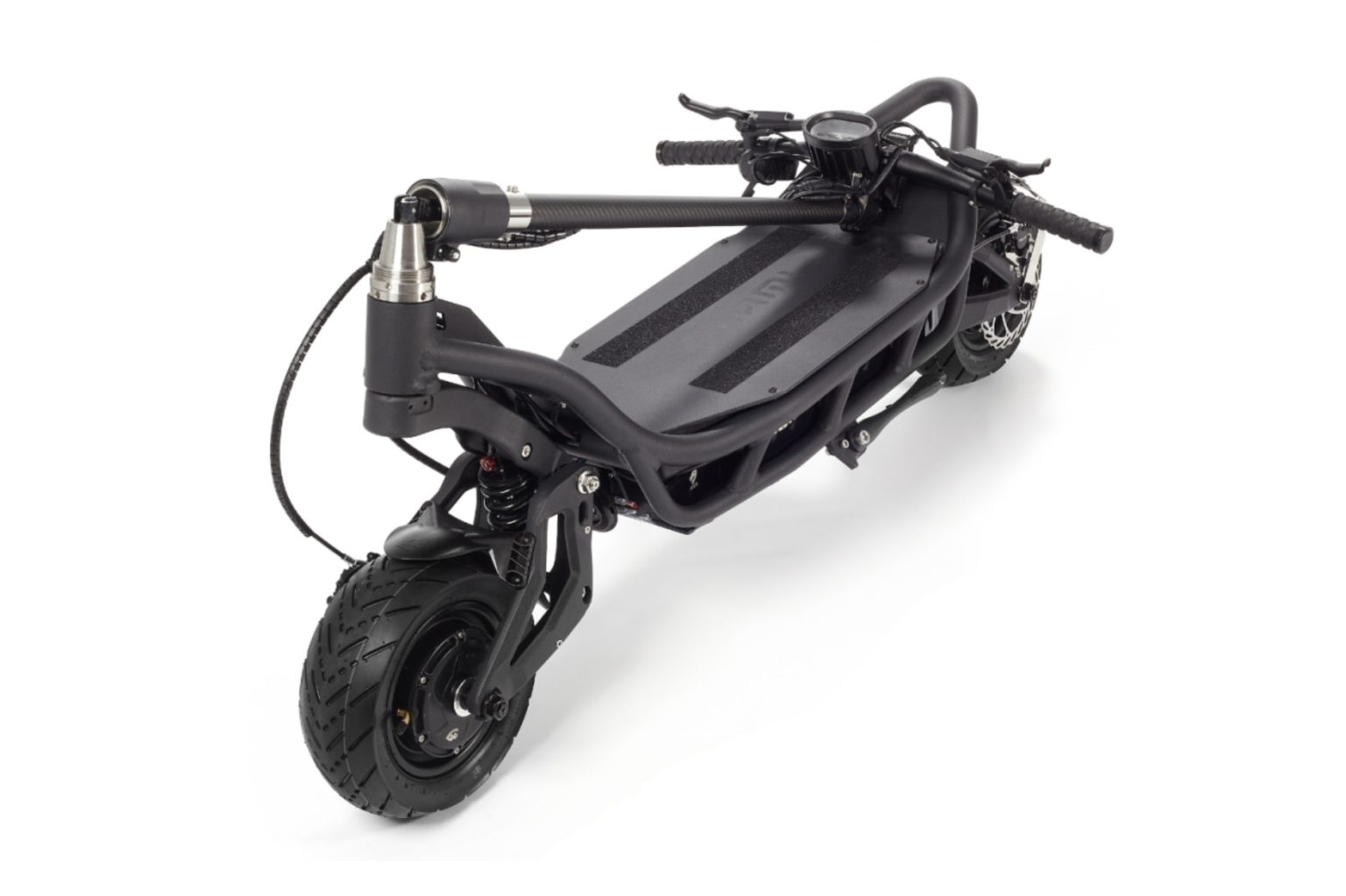

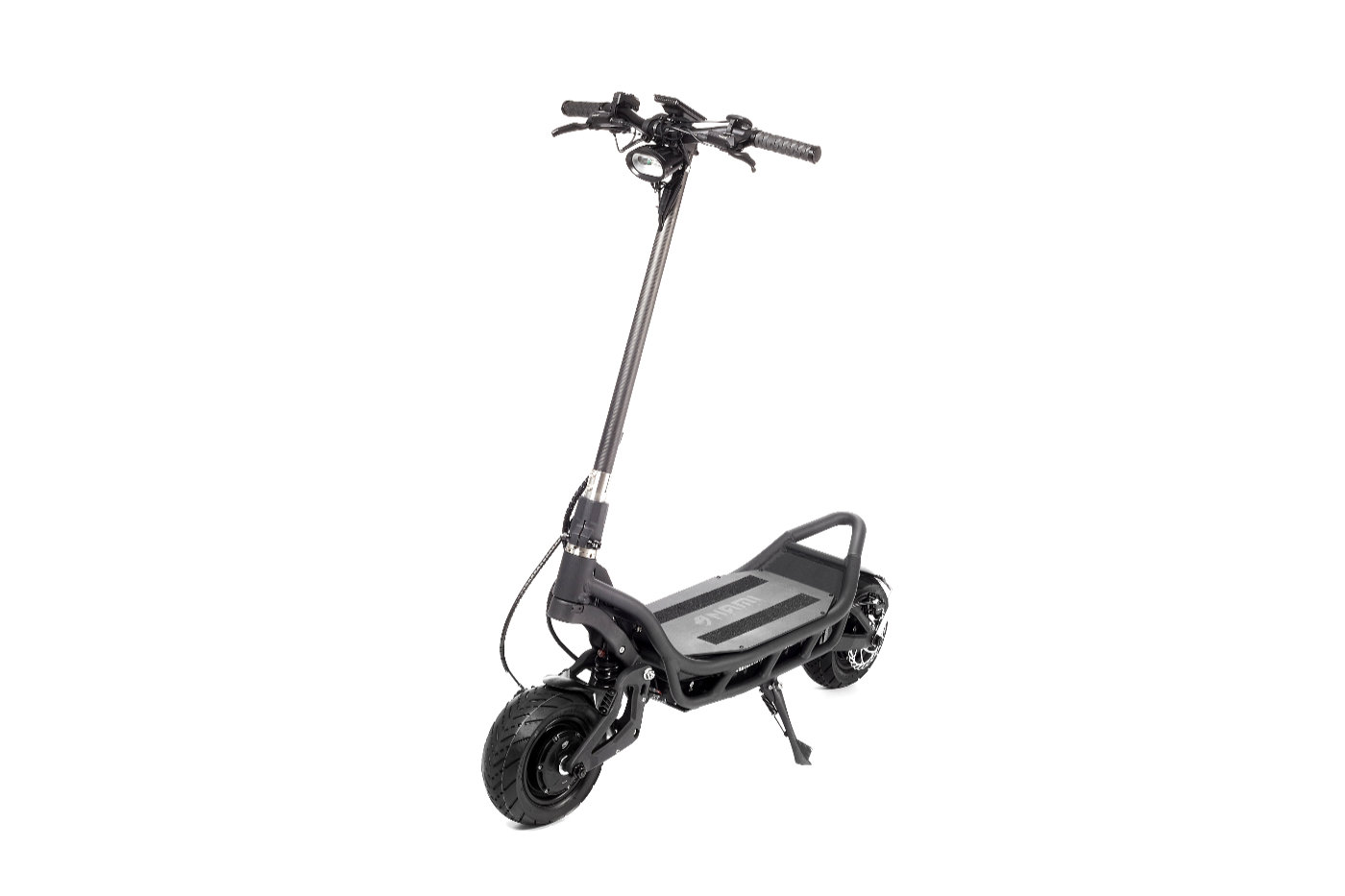

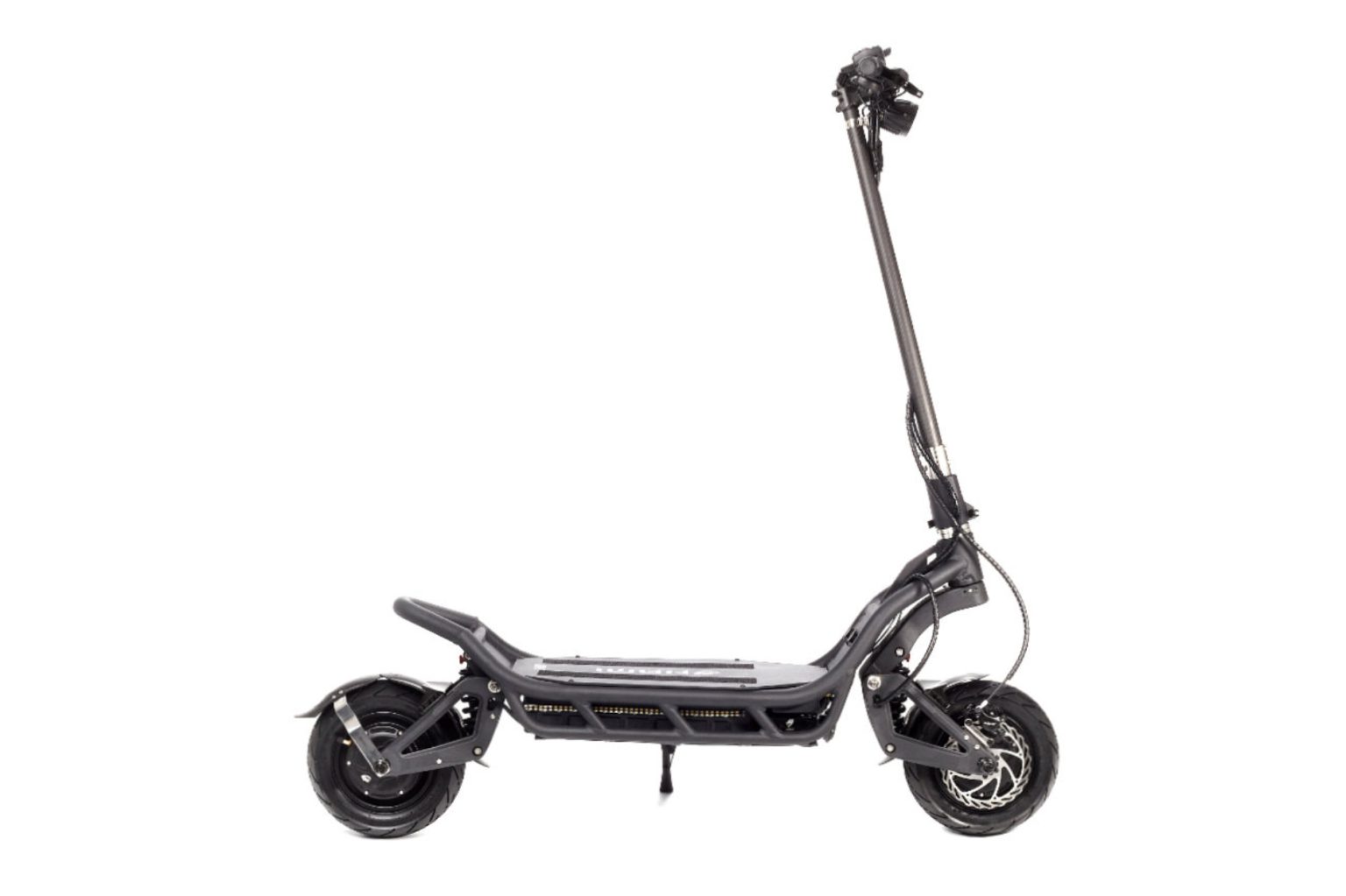

NAMI Burn-E 3 MAX Electric Scooter 2024

$350.00

Compare

Description

SPECIFICATIONS

Frame: One piece 6082 aviation aluminum forging

Battery: 72V 40Ah Panasonic/LG/Samsung

Net Weight Kg: 47 kg

Max speed km/h: 95 km/hr

Range with average speed around 30km/h: 120km

Motors: 1500Wx2 with hall sensors, peak at 4200Wx2 waterproof quick connector

Controllers: 12 mosfet, 50a max current controllers x2, sine wave, ip65, all waterproof connections

Brakes: Front and Rear full hydraulic brakes with 160mm rotors, 4 piston brake

Suspension: 165mm length standard hydraulic coil shock with rebound adjustment

Lights and Horn: 2000 lumen front led light, side LED strips integrated with turn signal, motorcycle horn, ip 55

Cable system and IP rating: Quick connections for all electric components, for the cables close to handle bar and under the deck. Quick connector for the motor and controller
IP 55 for the whole scooter

Folding system: Patent designed thread lock taper folding system, 304 stainless steel folding parts

Handle bar and steering column: 31.8mm diameter, full carbon fiber steering column

Tires: Tubeless 90/65-6.5, street or off road tires

Charger: 1 x 5A Charger (included), dual charging ports in the scooter

Steering damper: standard cylinder steering damper

Folding size (length x width x height):
1346mm x 680mm x 640mm

Package size (length x width x height): Honey comb cardboard 1405mm x 355mm x 690mm

Main dimensions (length x width x height):
Overall size: 1346mm x 680mm x 1446 mm
Hanlde bar to deck, 1090mm in height
Deck cover: 564x312mm, 766mm in length include rear foot rest Ground clearence: 150mm min
Top of the deck to the groud 292mm

Dashboard
5 riding modes, parameter settings for each controller is independent,
7 parameter settings under each of the riding modes are
1) Rear motor starting power, from 1 to 5
2) Front motor starting power, from 1 to 5
3) Rear motor max output, from 10 to 100 (percentage)
4) Front motor max output, from 10 to 100 (percentage)
5) Max speed, from 10 to 100 (percentage)
6) E-brake force, from 0 to 5
7) Turbo strength, from 0 to 5 (Turbo will add max speed and reduce the torque of the motor) Smart cruise control, adjust the cruise speed by pressing the switch.
Over heat protection, able to set up the max temperature for the heat protection start, temperature in each controller can be checked any time.
